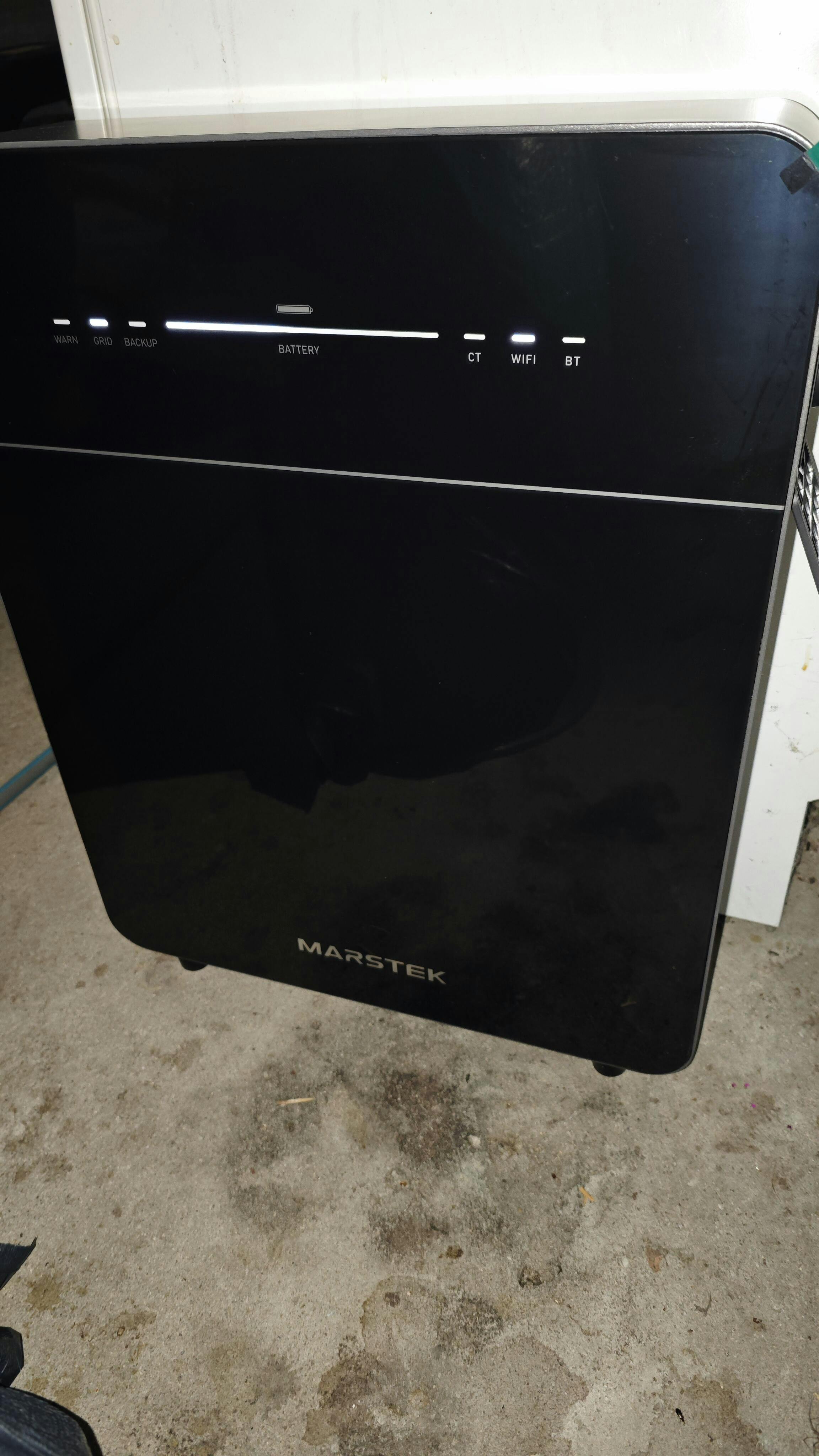

Marstek Venus E Gen 3.0 AC coupled energy storage system

1.099,00 € 1.699,00 €
Gesamtersparnis 600,00 €
1.099,00 € 1.699,00 €
Gesamtersparnis 600,00 €
  • Annual savings of up to €1,310
  • 2.5 kW AC input and output power
  • 5.12 kWh storage capacity
  • Expandable to up to 7.5 kW / 15.36 kWh in single-phase operation
  • AI mode for intelligent energy management and higher savings
  • 100% PV system compatibility
  • Zero export via smart meter
  • IP65 protection class and reliable operation in a wide temperature range
  • LFP battery technology with over 6000 cycles, up to 15 years lifespan and 10 years warranty
--
Storage Capacity
0 W
PV Power
--
AC output power
Choose your energy storage
Marstek Venus E Gen 3.0 AC coupled energy storage system
Venus E Gen 3.0 AC gekoppeltes Energiespeichersystem
-- --
You might still need
Marstek CT002 3-Phase Smart Meter
CT002 3-Phasen Smart Meter
99,00 €
Total Price
--
Pay conveniently
PayPal Apple Pay Google Pay Shop Pay Visa Mastercard Maestro
Reliable delivery
Annual savings of €1,310

Venus E Gen 3.0 helps you save up to €1,310 per year through AI-powered control and real-time electricity prices.

100% compatible with existing PV systems

The Venus E Gen 3.0 was designed to work seamlessly with your existing grid-connected solar system – without replacing the inverter or making any changes to the system. Simply connect it and store more solar energy.

Up to 2500 W reliable emergency power supply

The Venus E Gen 3.0 features a dedicated backup power outlet that provides up to 2500 W of power during power outages. Reliably power essential devices such as lamps, routers, or refrigerators – even when the mains electricity fails.

Multiple modes for diverse needs

With the MARSTEK app, you can effortlessly switch between AI optimization, self-consumption, and manual modes. The Venus E Gen 3.0 adapts to your energy style – whether you prefer full automation, intelligent response, or manual precision.

Smart energy begins with AI and dynamic tariffs.

The Venus E Gen 3.0's AI mode automatically schedules your charging times based on real-time electricity prices in your region from platforms like Nord Pool, Tibber, and Octopus Energy. It learns your energy consumption patterns, analyzes battery level and weather forecasts, and continuously adjusts charging time and amount—helping you reduce costs and maximize savings effortlessly.

Zero feed-in to the grid thanks to smart meters

By integrating a real-time smart meter and adaptive control, Venus E Gen 3.0 ensures that no excess solar energy is fed into the grid. Ideal for regions with feed-in restrictions or limited feed-in tariffs.

Broad compatibility with leading smart meters

Venus E Gen 3.0 supports a wide range of smart meters from leading manufacturers, enabling precise energy measurement and efficient adaptive control in various application areas.

Reliable operation down to -20 °C | IP65 protection class

The Venus E Gen 3.0 guarantees stable performance even at freezing temperatures down to -20 °C. Its IP65-rated housing protects against rain, dust, and harsh environmental conditions.

Technical Details

Battery parameters
Nominal voltage 51.2 V
Energy content 5120 Wh (5.12 kWh)
Capacity 100 Ah
Battery type LiFePO4
Lifespan > 6000 cycles (25 °C)
Depth of discharge (DOD) 90%
AC mains connection (grid)
Rated power (input) 2.5 kW
Output power 0.8 kW (Default) / 2.5 kW (*Premium)
Mains voltage 230 V (187 V - 253 V)
Nominal frequency 50 Hz
Maximum input current 10.9 A
Connection type Household plug (Euro 16A, 3-pin)
Power factor > 0.99 (adjustable ±0.8)
Total harmonic distortion (THDi) < 3%
Emergency power (backup)
Nominal output power 2.5 kVA
Peak power 3.5 kVA (10 s)
Output voltage 230 V (50 Hz)
Output current 10.9 A
Total harmonic distortion (THDu) < 3% (linear load)
Efficiency & Protection
Maximum efficiency (battery to AC) > 93.5%
Protection class I
Overvoltage category DC II / AC III
Protection rating IP65
Insulation type Insulated
System & General
Cooling Natural convection (fanless)
Operating temperature -20 °C to +55 °C
Communication WiFi & RS-485
Dimensions (L×W×H) 480 × 153 × 624 mm
Weight 60 kg
Certifications EN50549-1, IEC62040, IEC62477

Included in the scope of delivery

x1
AC cable
x1
Warranty card
x1
Fasteners

Disclaimer:

Venus E Gen 3.0 Fundamentals: Nominal capacity 5.12 kWh (90% depth of discharge), 93% charge/discharge efficiency, 2 daily cycles, 365 operating days/year.

Tariffs: Night rate electricity €0.16/kWh, Peak load yield (avoided costs) €0.51/kWh.

Core Calculations:

  • Usable effective capacity per cycle: 5.12 kWh × 90% = 4.61 kWh
  • Actual energy output (discharge): 4.61 kWh × 93% ≈ 4.29 kWh
  • Energy required for charging: 4.61 kWh ÷ 93% ≈ 4.96 kWh

Yield per Cycle:

  1. Day (PV charging, 13:00–17:00 → Discharge 18:00–21:00): No charging costs, yield 4.29 kWh × €0.51/kWh = €2.19
  2. Night (Night rate charging, 23:00–6:00 → Discharge 7:00–12:00): Charging costs 4.96 kWh × €0.16/kWh = €0.79, Net profit €2.19 – €0.79 = €1.40

Total Yield:
Daily €3.59 (€2.19 + €1.40), annually approx. €1,310 (€3.59 × 365 days).

Note:
Ideal estimation – actual yield depends on PV output, tariff fluctuations, device performance, etc.

Legal Notices (Germany)

To benefit from the simplified regulations for plug-in generation systems according to § 8 para. 5a EEG, the following limits apply:

  • The total installed PV capacity must not exceed 2,000 Wp.
  • The inverter apparent power must be ≤ 800 VA.

If your system exceeds these limits, the regular requirements of the grid operator apply. This may include, among other things, extended registration, a meter modification, or formal approval procedures. Please inform yourself about the locally applicable regulations before installation.

Registration & Installation:
Plug & Play solar systems can generally be installed and connected independently in Germany. Registration in the Market Master Data Register (MaStR) is legally mandatory (www.marktstammdatenregister.de). Registration with the grid operator has been significantly simplified or partially automated by Solar Package I.
