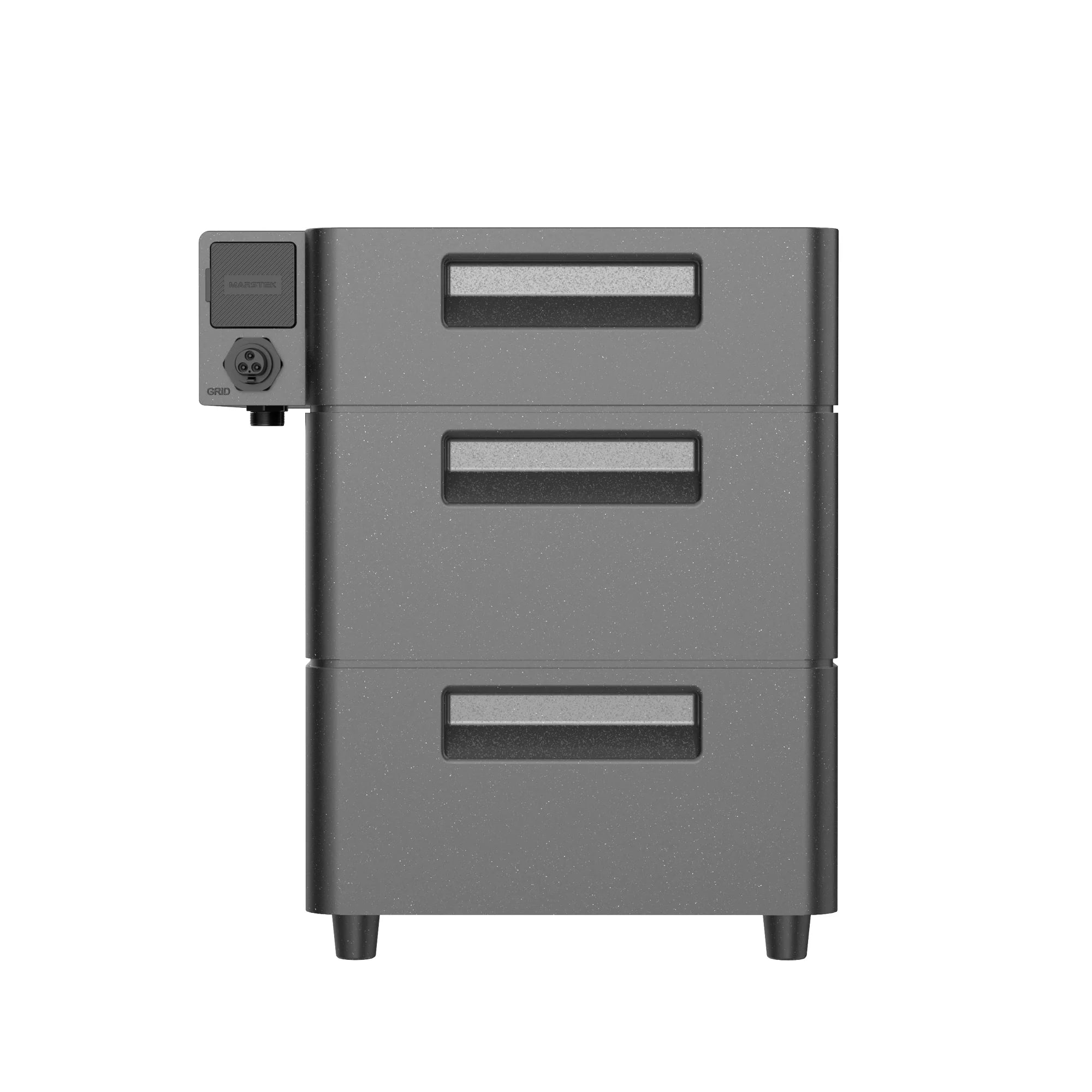

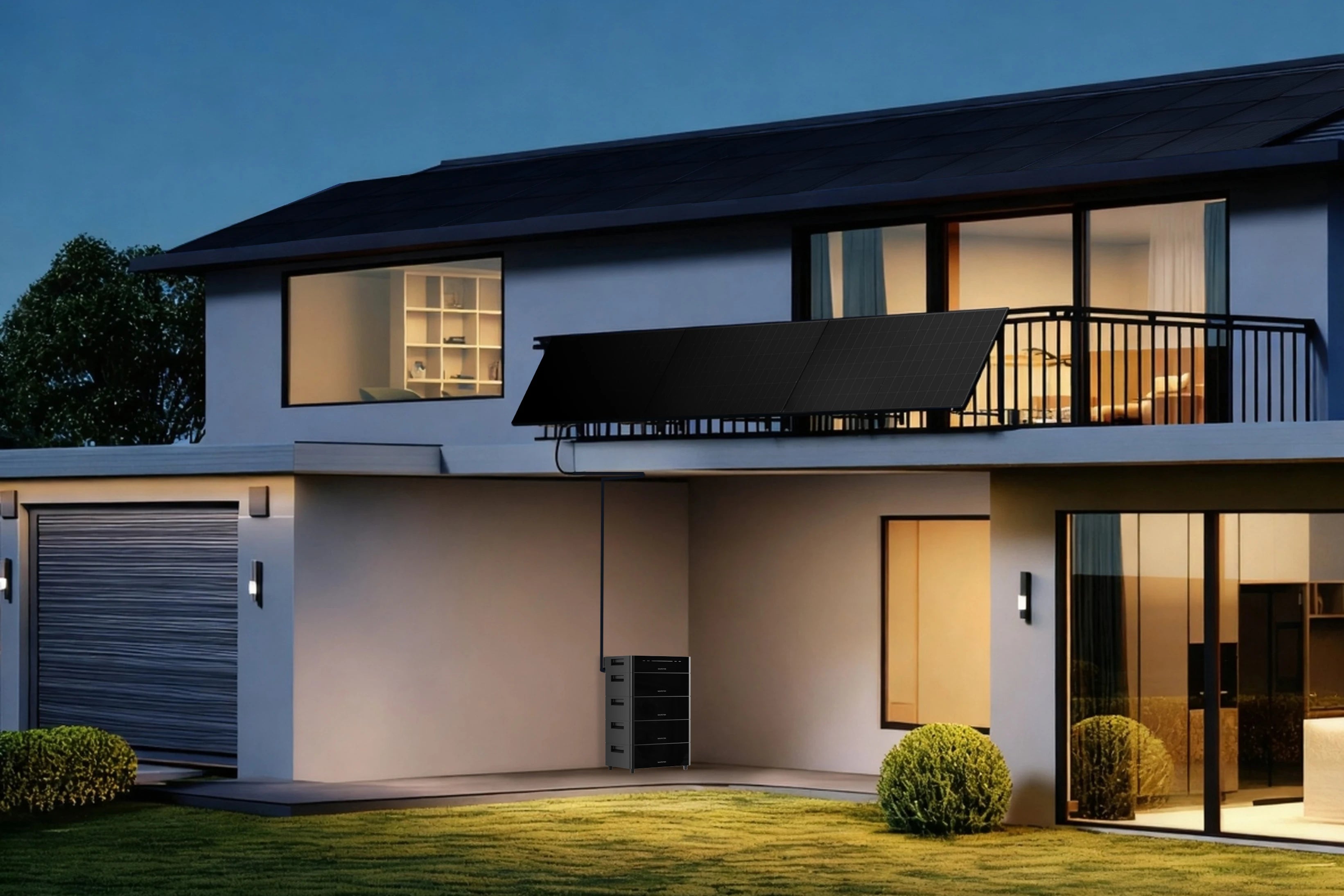

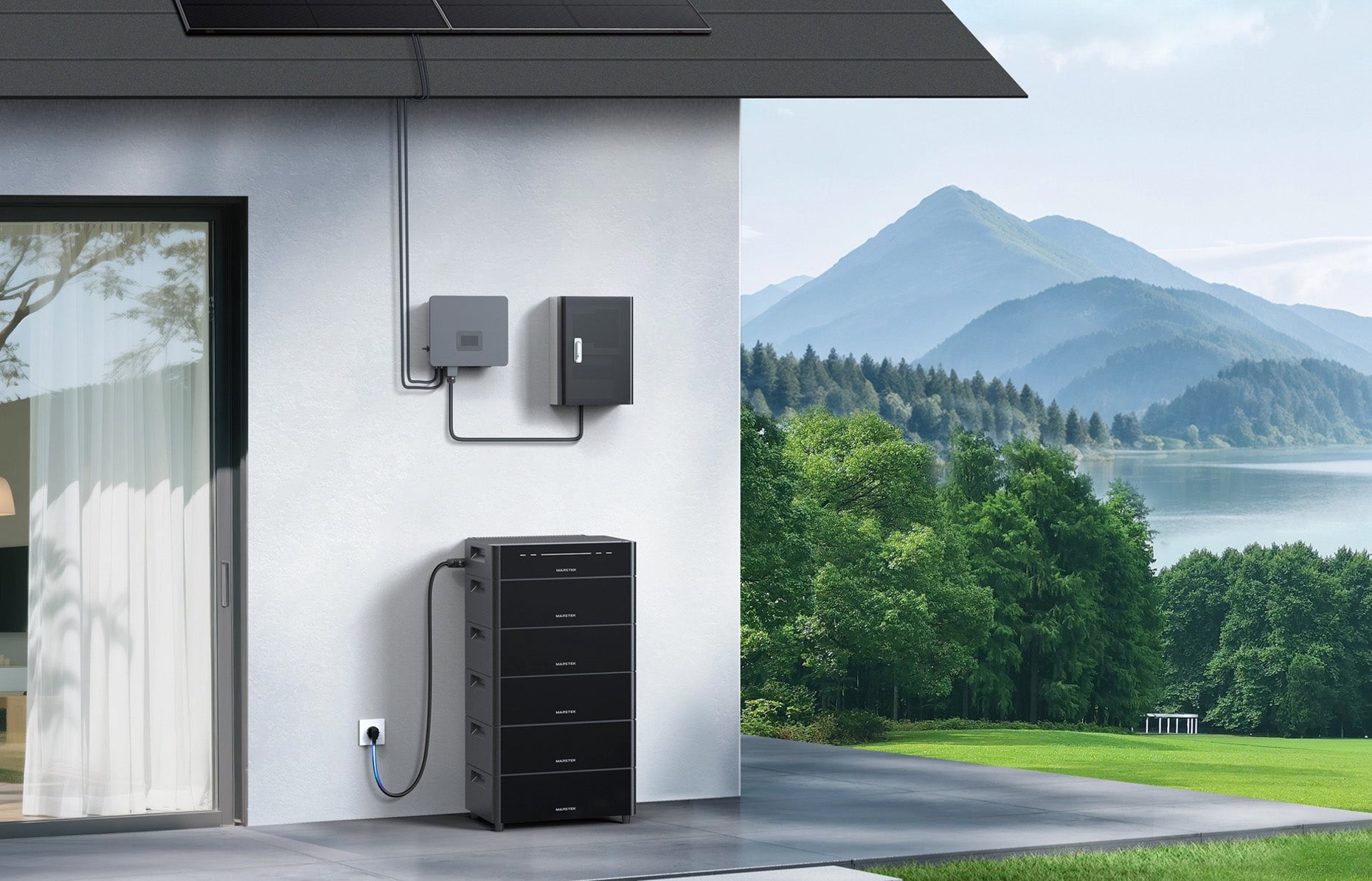

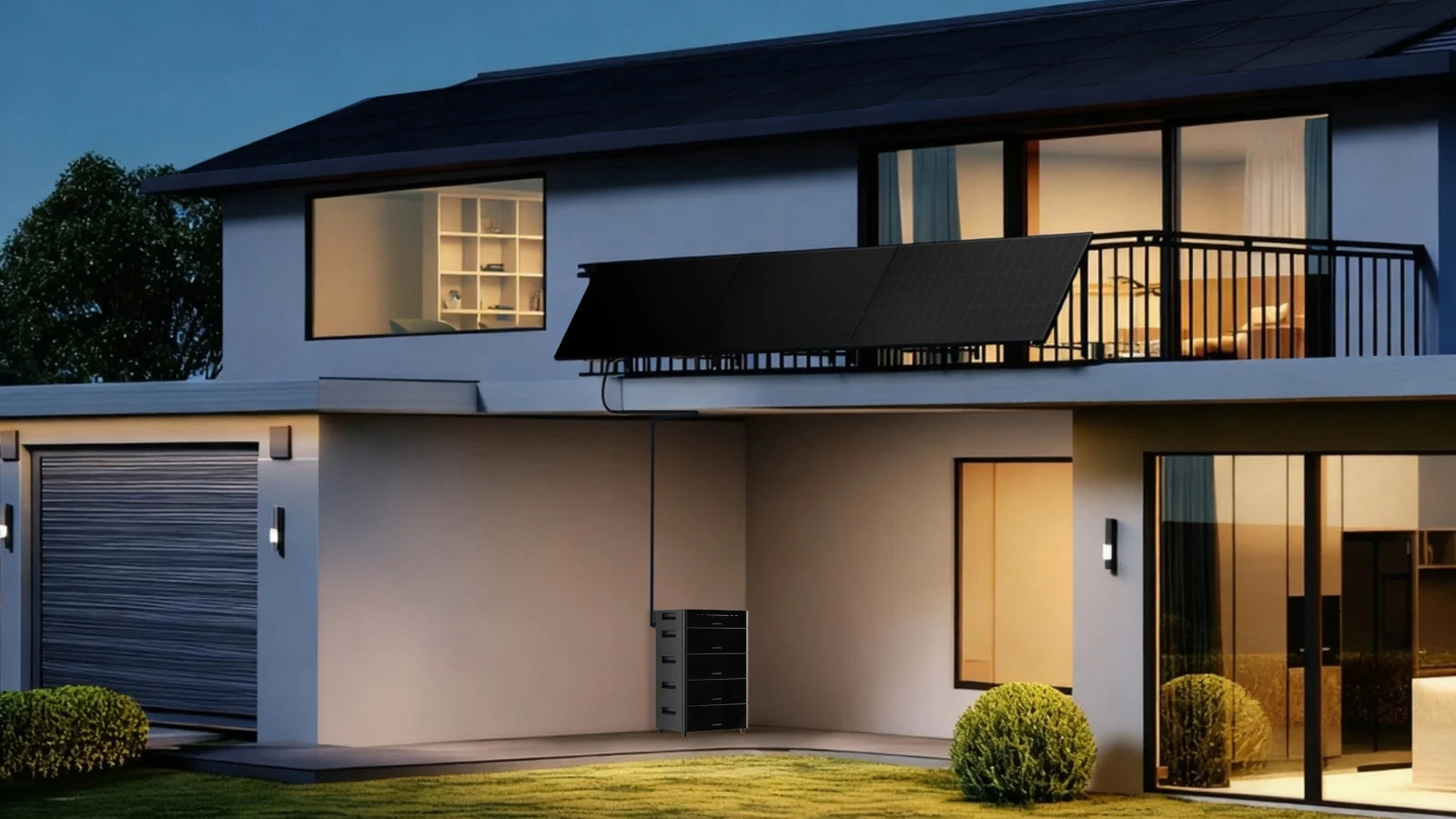

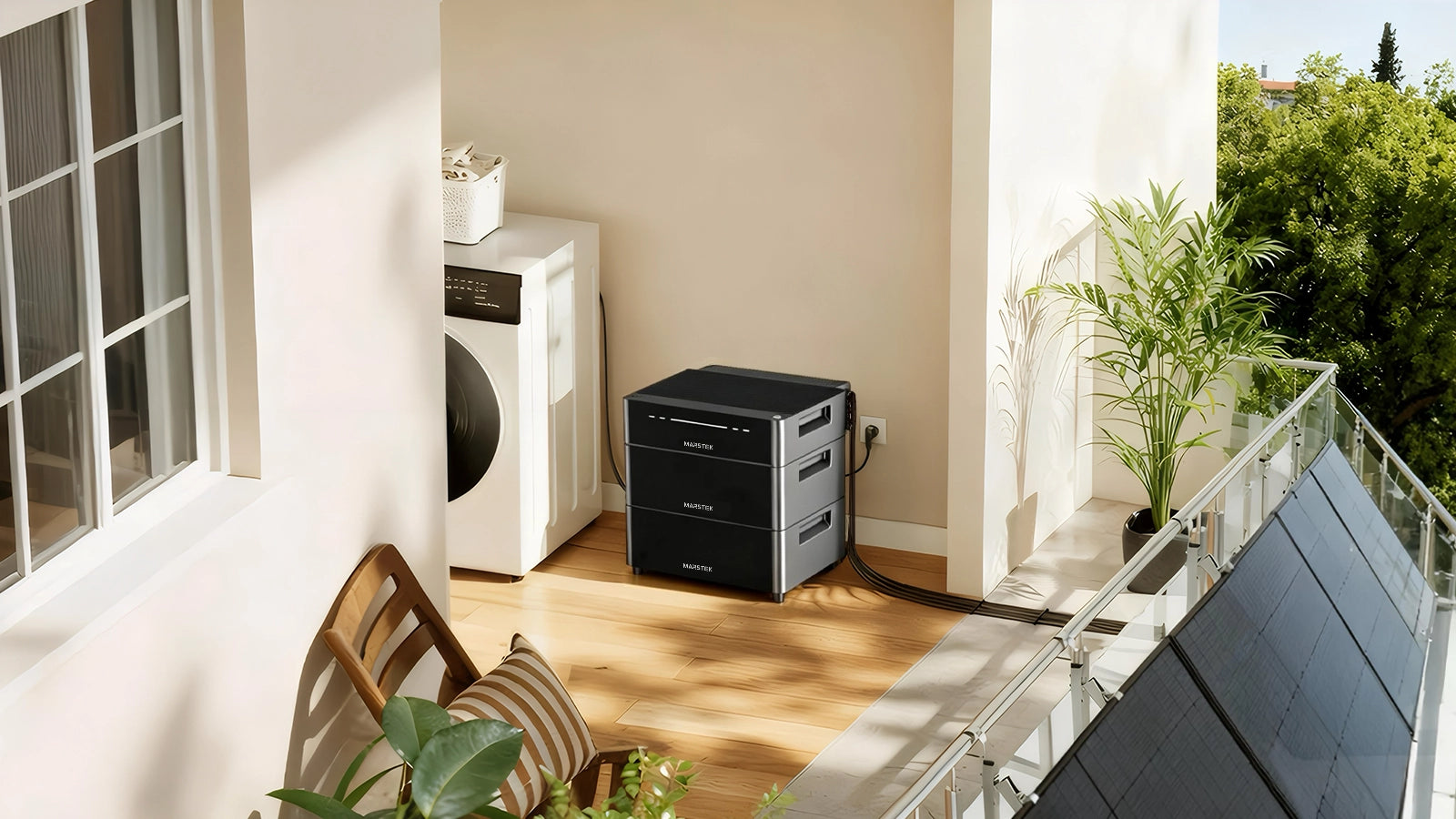

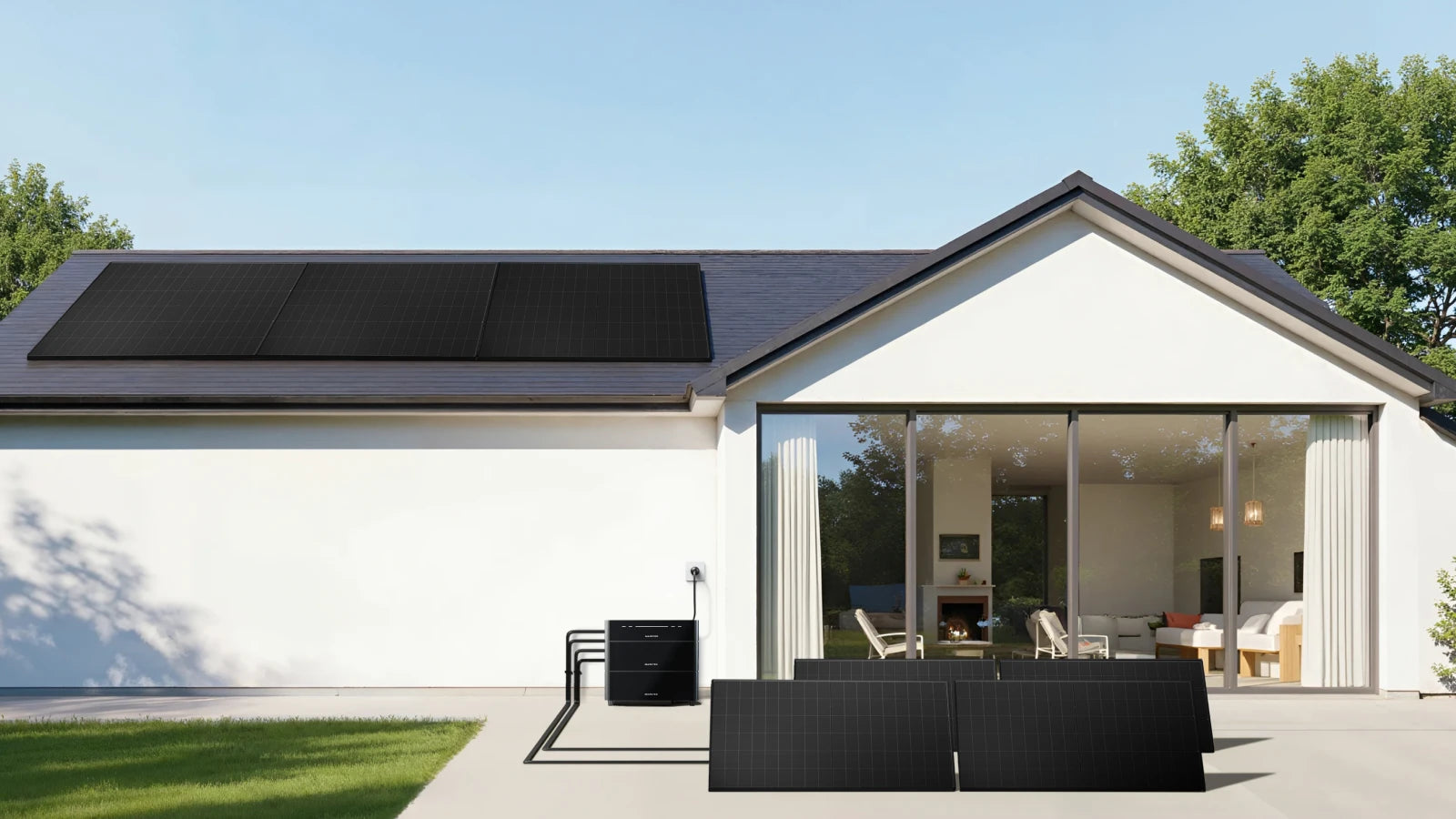

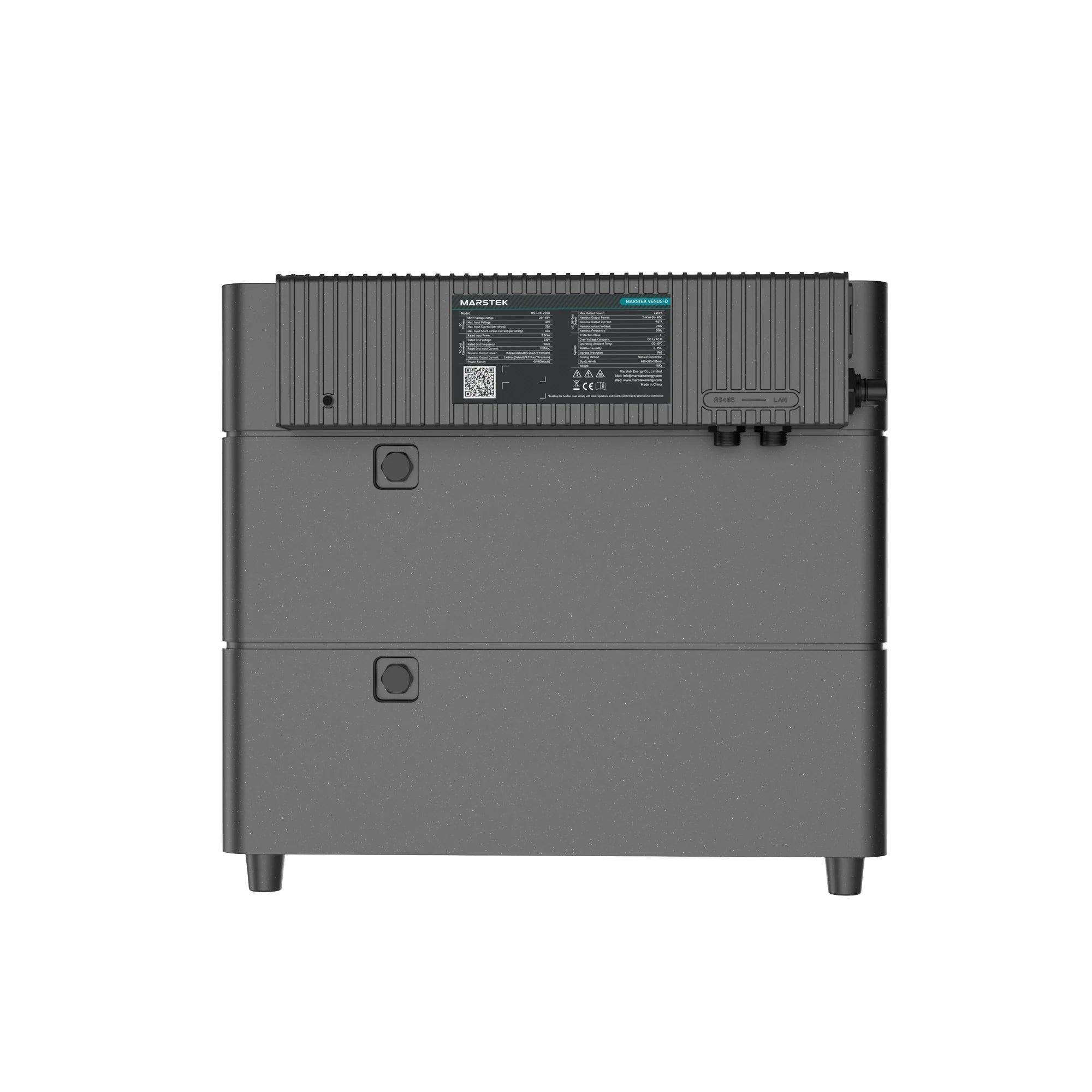

Marstek Venus D All-in-One Balcony Power Plant with Storage

Offer719,00 €
  • Annual savings of up to €1,797
  • All-in-one design with integrated micro-inverter
  • 4 MPPTs for up to 4 kW PV input power
  • Bidirectional AC power up to 2.2 kW with 2.5 kW peak power
  • Emergency power supply (EPS) with < 15 ms switching time
  • Expandable storage capacity from 2.56 kWh to up to 15.36 kWh
  • AI-based energy management (MARSTEK Intelligence)
  • Plug & Play – ready to use in just 5 minutes
  • LFP battery technology with 6000+ cycles, up to 15 years lifespan and 10-year warranty
  • IP65 protection and reliable operation across a wide temperature range
--
Speicherkapazität
0 W
PV-Leistung
--
AC output power
Choose your energy storage
Venus D Inverter (without battery)
719,00 €
Extension battery
Marstek Venus A Expansion Battery
Venus D extension battery 2,56 kWh
Choose your solar panels
2 panels
4 Panels
8 panels
500Wp Bifacial
+ --
110Wp Flexible
+ --
110Wp Flexible
+ --
220Wp Flexible
+ --
220Wp Flexible
+ --
500Wp Bifacial
+ --
500Wp Bifacial
+ --
You might still need
Marstek CT002 Gratisgeschenk - Marstek

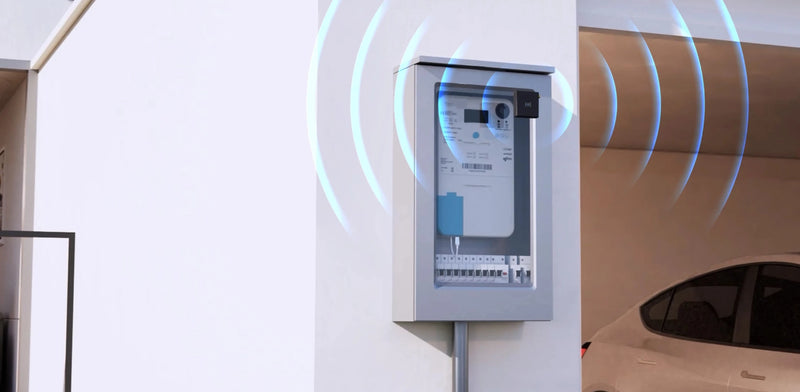

Marstek CT002 3-Phase Smart Meter
+69.00 € 109.00 €
--
Marstek Venus D All-in-One Balcony Power Plant with Storage
--
--
0% VAT on deliveries to Germany

By ticking this box, you confirm that the requirements are met and the delivery is exempt from VAT.

Dear MARSTEK fan,
A tax rate of 0% may apply to the selected products in accordance with Section 12 Paragraph 3 of the German VAT Act (UStG). Please carefully check whether the requirements are met in your case. We do not provide tax advice and assume no liability for the tax treatment.

Conditions for VAT exemption (§ 12 para. 3 UStG):
Please check if the following conditions apply to you and tick the box if so:

The delivery and billing address is located in Germany.

The product is installed on or near private homes, apartments or public buildings used for non-profit purposes, or on mobile homes or houseboats that are not moved or are only moved occasionally.

The installed gross capacity of the photovoltaic system does not exceed 30 kWp, according to the market master data register.

You are also the operator of the purchased solar module.

Technische Daten
Module comparison & data
Pay conveniently
PayPal Apple Pay Google Pay Shop Pay Visa Mastercard Maestro
Reliable delivery

Unrivaled performance and maximum freedom

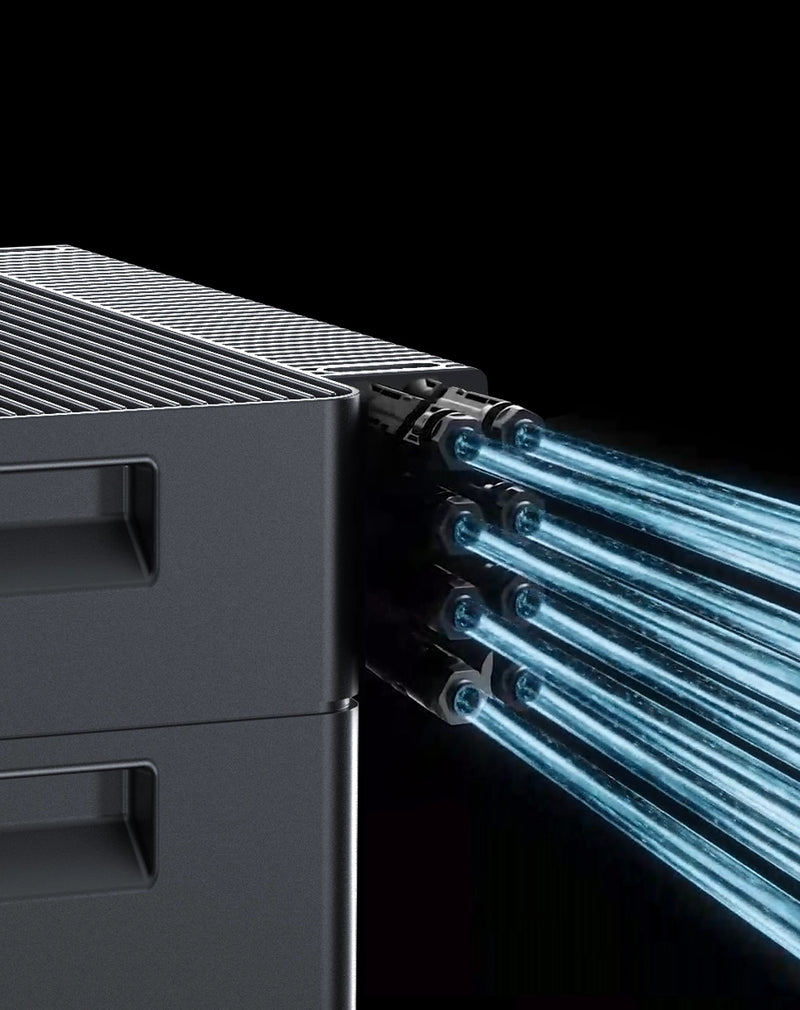

Highly efficient energy generation

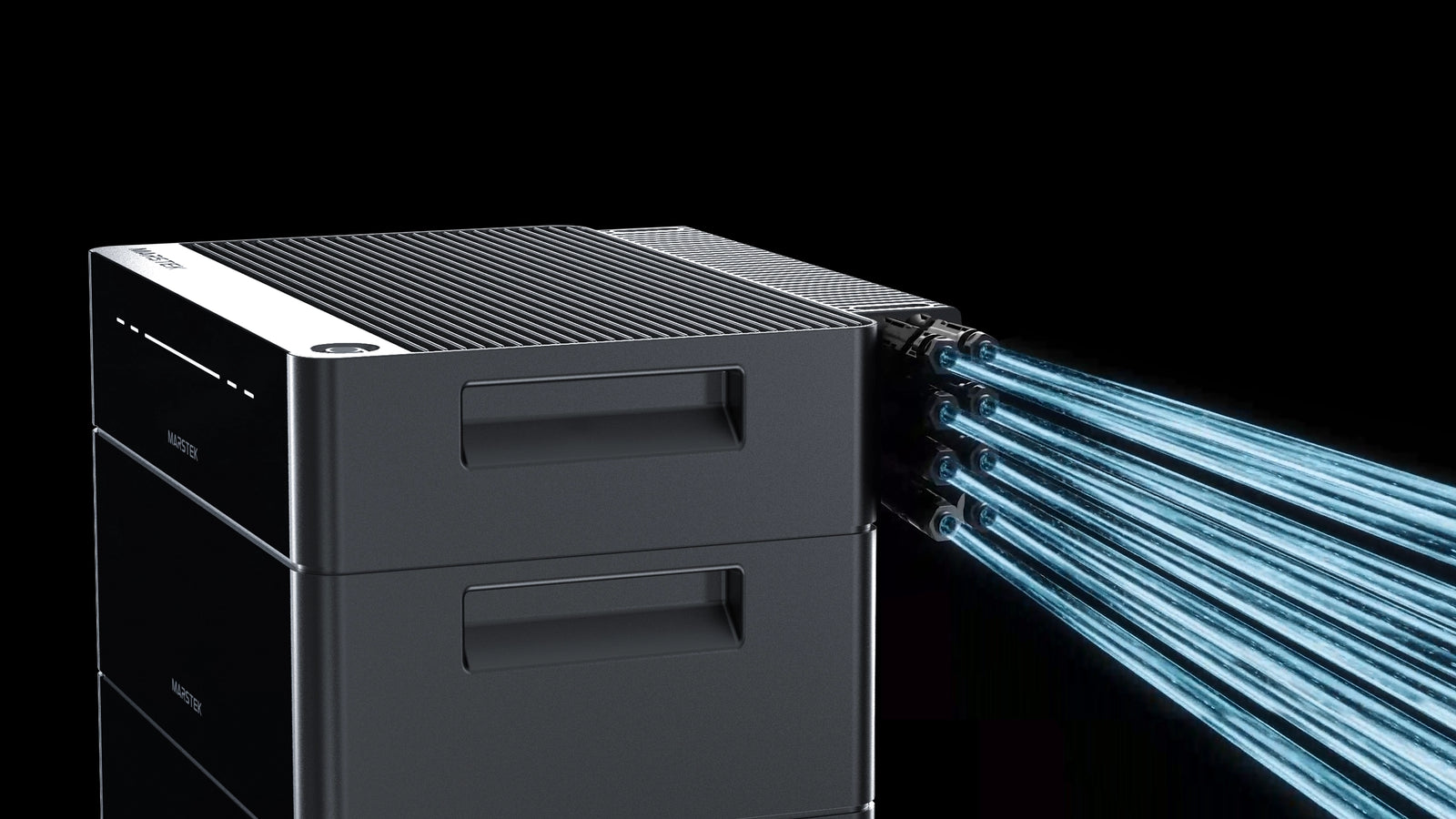

Four independent MPPT channels and 4 kW input power maximize energy uptake. Minimized losses ensure peak efficiency and significantly more electricity for your own use.

Intelligent cost management

The integrated 2.2 kW inverter takes advantage of dynamic electricity tariffs. It charges automatically when prices are low or negative, thus sustainably reducing your costs.

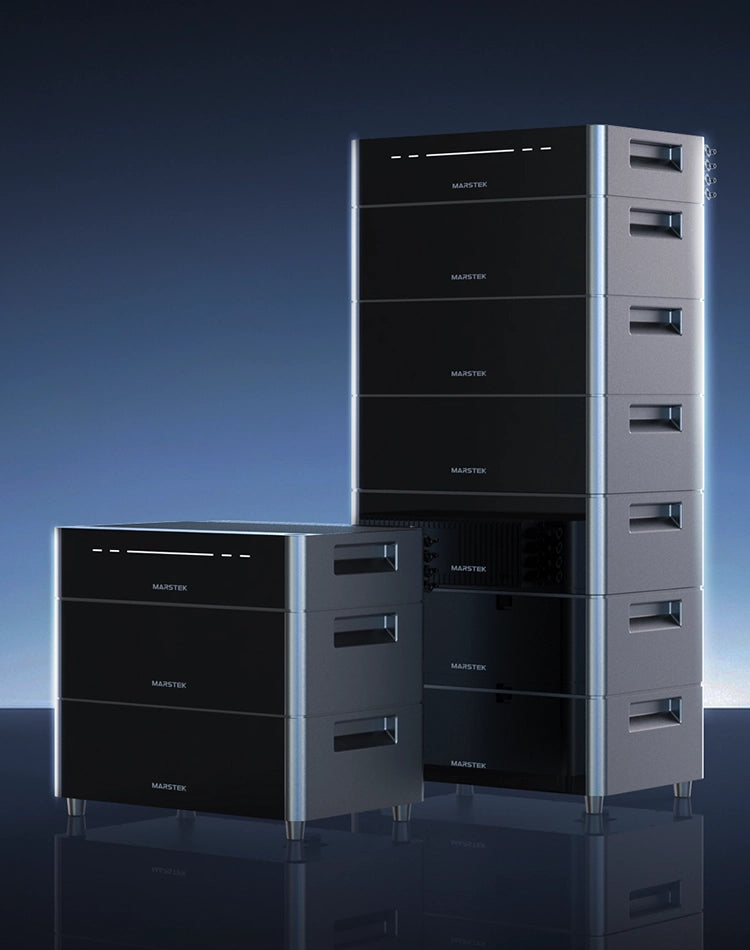

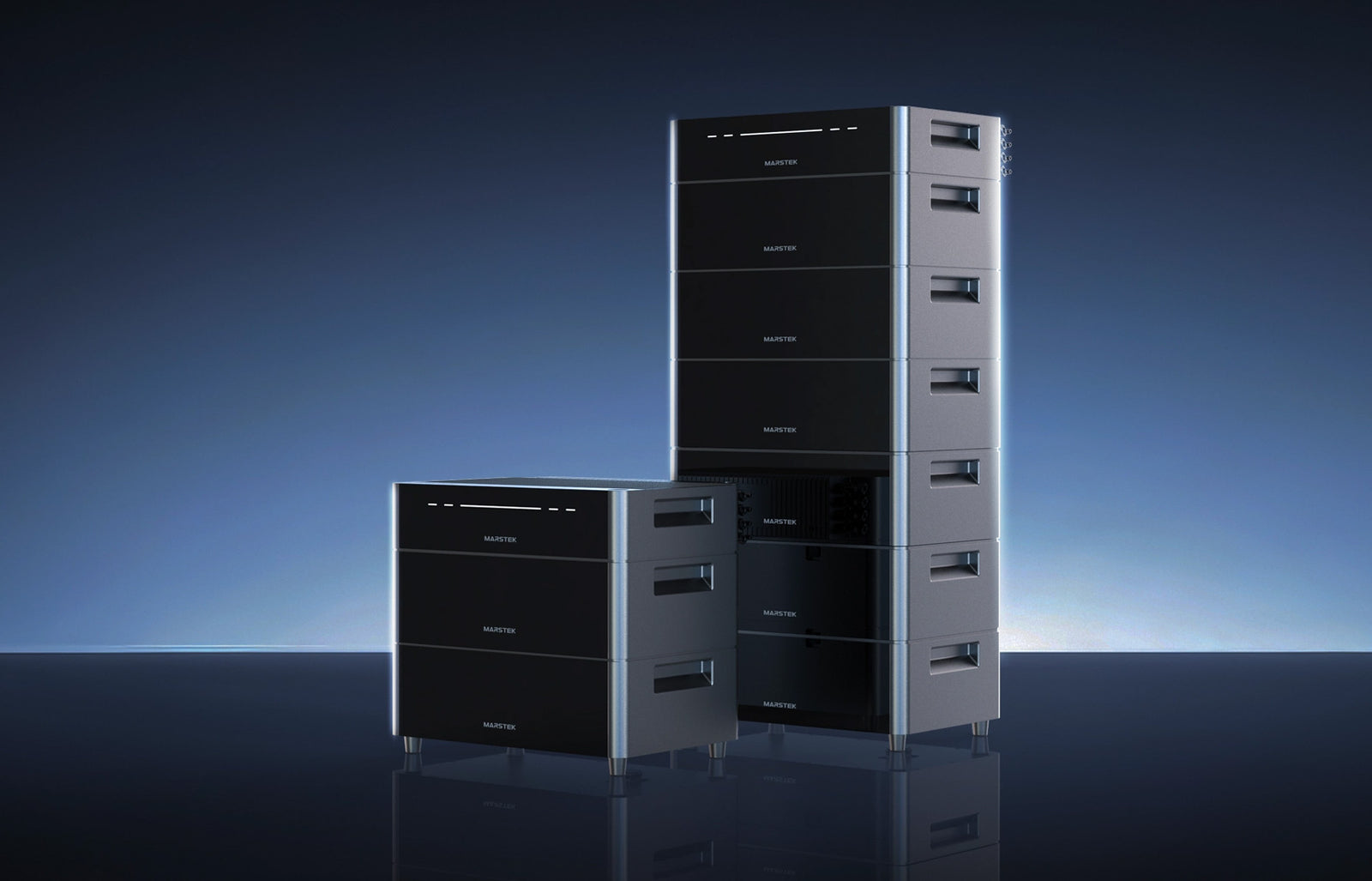

Tailor-made extension

Stay flexible for the future. Start with 2.56 kWh and easily scale the system up to 15.36 kWh as your energy needs increase. This way, your energy supply grows seamlessly with your household.

Highly efficient energy generation

Four independent MPPT channels and 4 kW input power maximize energy uptake. Minimized losses ensure peak efficiency and significantly more electricity for your own use.

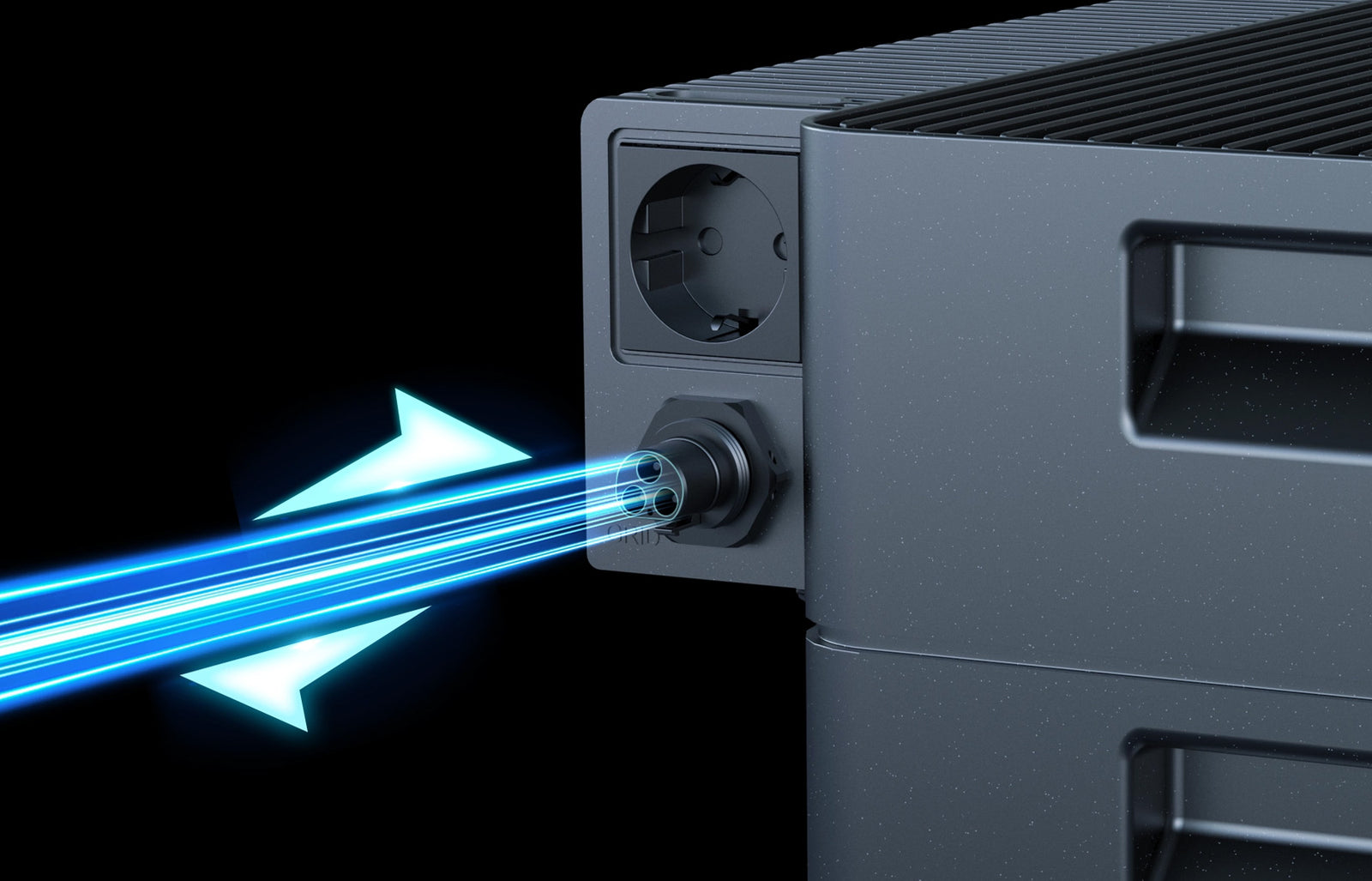

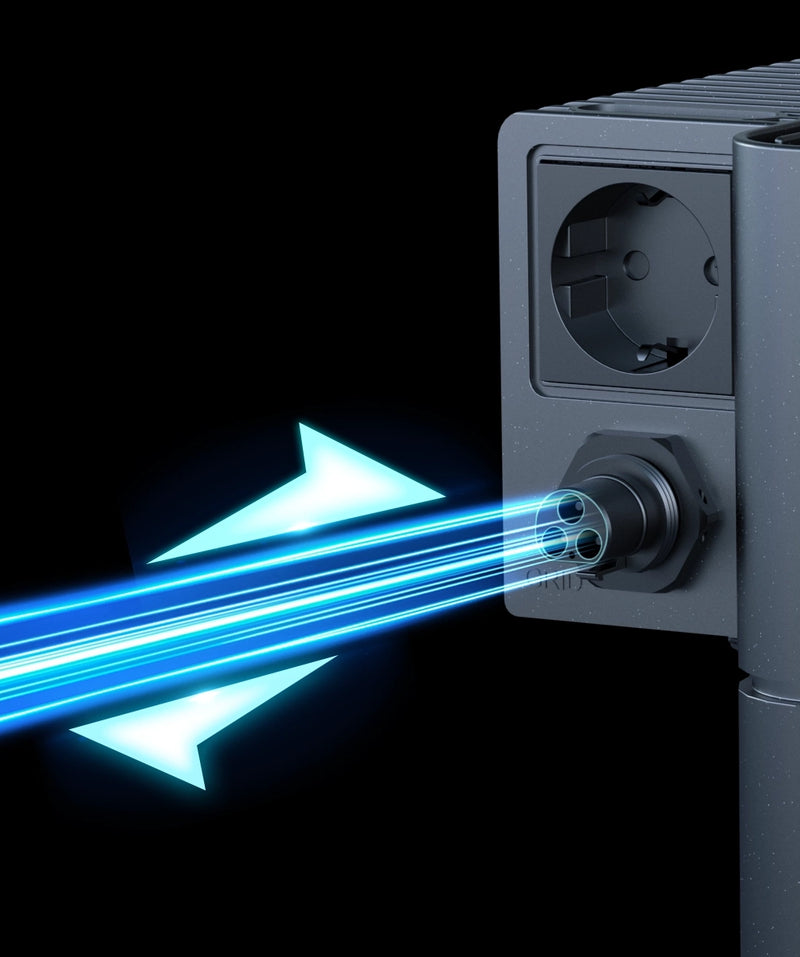

Intelligent cost management

The integrated 2.2 kW inverter takes advantage of dynamic electricity tariffs. It charges automatically when prices are low or negative, thus sustainably reducing your costs.

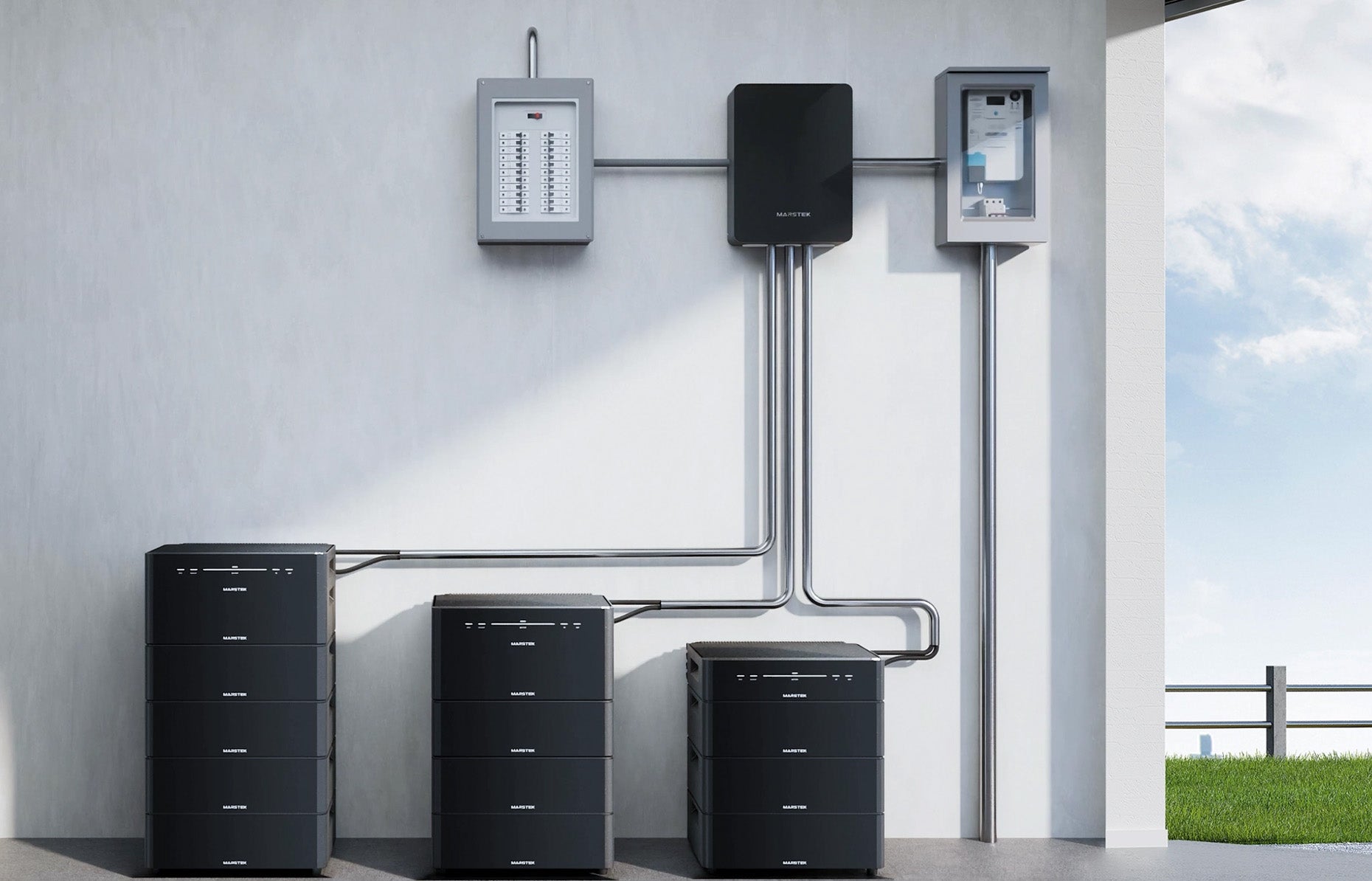

Tailor-made extension

Stay flexible for the future. Start with 2.56 kWh and easily scale the system up to 15.36 kWh as your energy needs increase. This way, your energy supply grows seamlessly with your household.

A clear conscience that pays off.

Protect what you love. With 3,932 kg less CO₂, you're making a real contribution to your children's future – and thanks to savings of €1,797, you'll already be enjoying more of it today. Sustainability without compromise.

AI mode with MARSTEK Intelligence

Powered by MARSTEK Intelligence, AI mode optimizes energy flow in your home. It automatically schedules charging processes to maximize self-consumption, reduce electricity costs, and ensure a reliable power supply at all times.

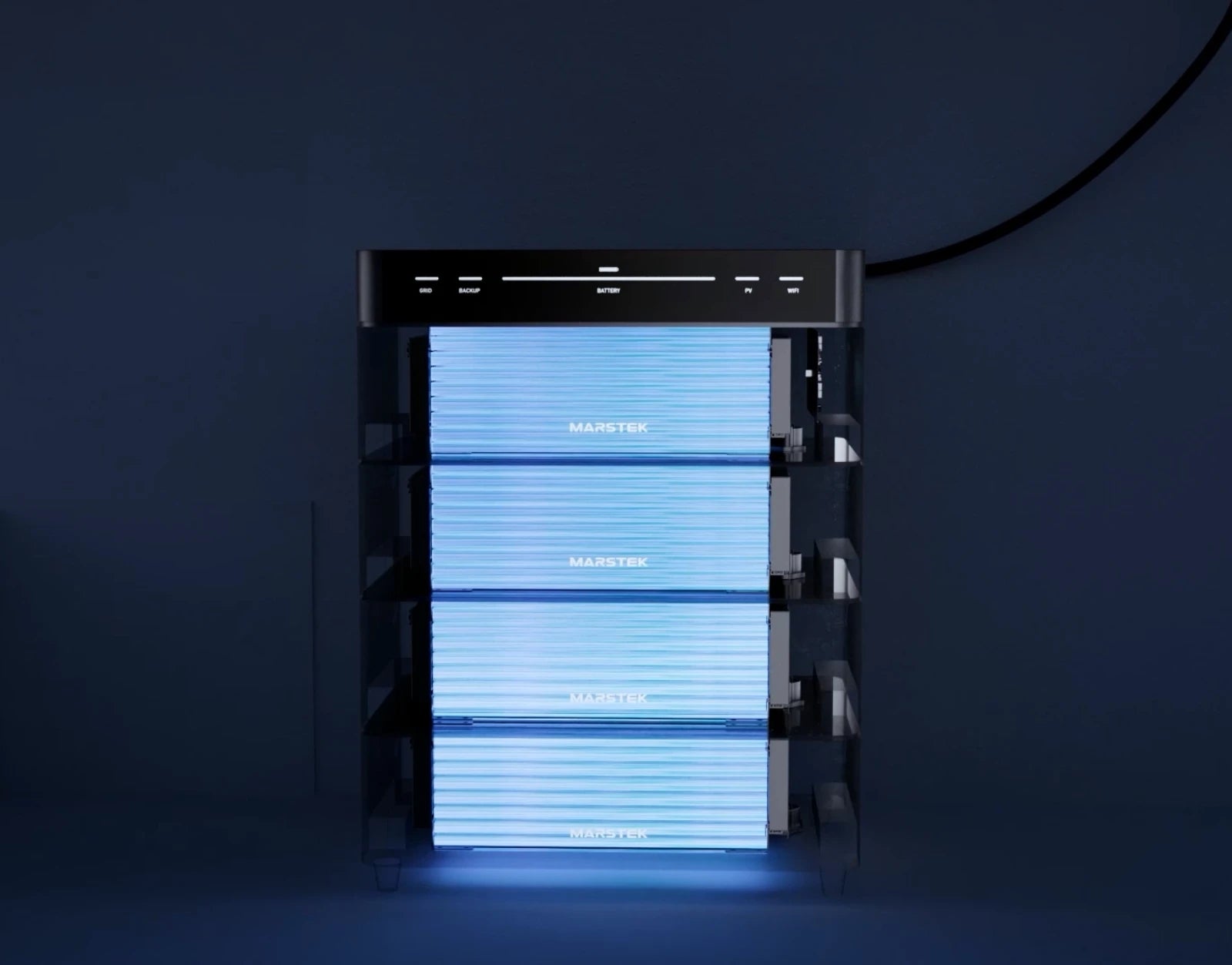

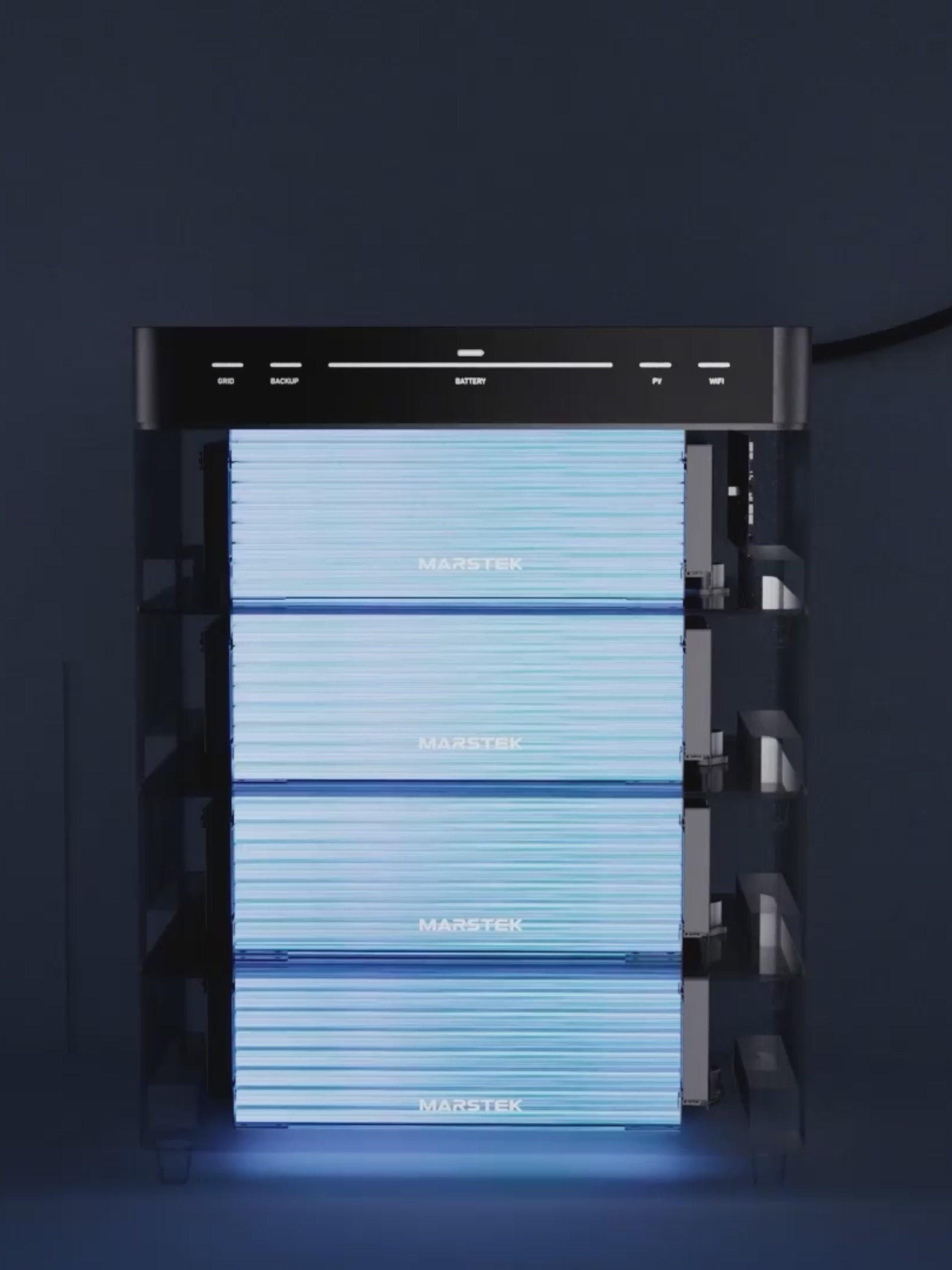

Robuste Batterie

Durability without compromise

Venus D is built for long-distance use. With over 6,000 charging cycles, the system still offers 80% of its original capacity even after 15 years. Backed by a 10-year warranty and first-class support, you're investing in lasting security and efficiency.

Tech Specs

PV input (DC)
Max. PV output 4000 W
MPPT voltage range 25 V - 55 V (low voltage)
Max. input current 32 A (per MPPT)
Number of MPPT trackers 4
Connector system MC4
MPPT efficiency 99.80%
Mains connection (AC)
Rated power 2200 W (2.2 kVA)
Mains voltage 230 V (single-phase)
Rated current 9.6 A
Network configuration L / N / PE
Connection type BC01 (Wieland compatible)
Power factor > 0.99 (adjustable)
Emergency power (backup)
Output power 2200 W
Peak power 2400 W (for 60 s)
Switchover time < 15 ms (UPS level)
Output voltage 230 V
Connection Standard Schuko socket
THDu < 3% (Clean sine wave)
System & General
System efficiency > 94.5% (battery to AC)
Operating volume < 25 dB (Fanless / Silent)

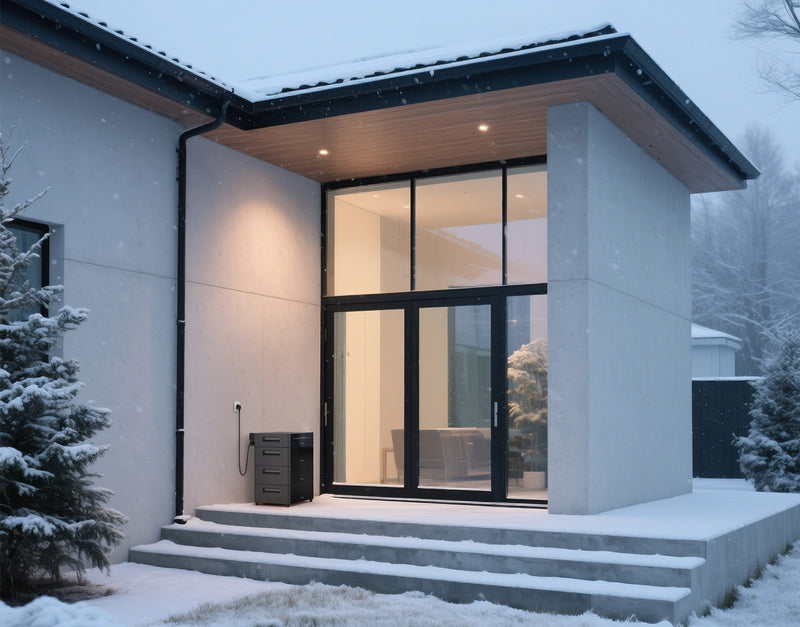

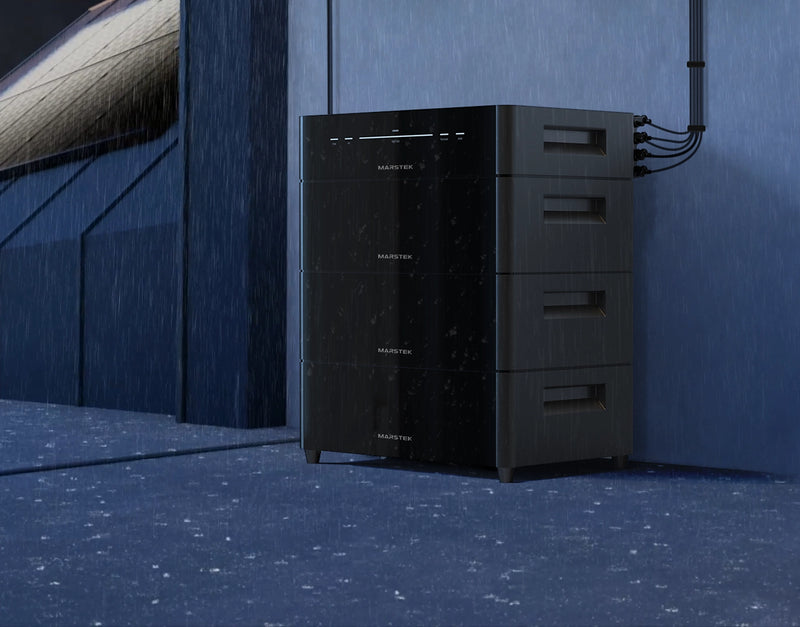

Protection rating IP65 (suitable for outdoor use)

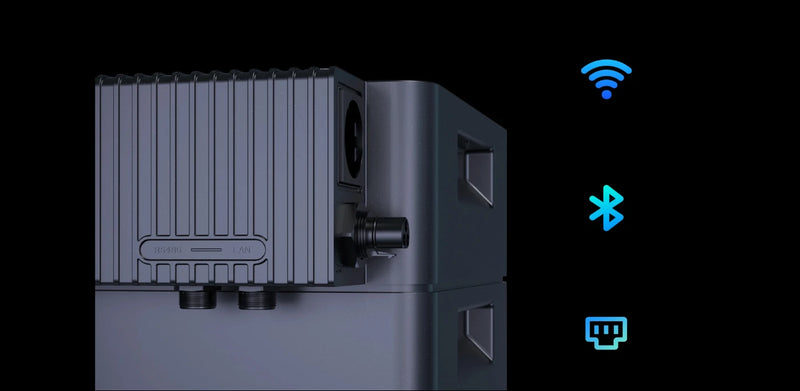

Communication WiFi / Bluetooth / App control
Dimensions (W×H×D) 480 × 320 × 230 mm
Weight 28 kg

Disclaimer

Electricity cost savings, CO₂ reduction: Up to €1,797 per year and 3,932 kg CO₂:

Power generation:
According to data from MARSTEK's proprietary EMS platform, a 1000W solar panel in Southern Europe can generate up to 1,160 kWh annually. This product supports up to 4,000W of solar power, resulting in an annual generation of 1,160 × 4 = 4,640 kWh. Annual storage capacity: 15.36 kWh × 365 = 5,606.4 kWh.

Calculation assumptions:
Self-consumption rate: 85% ( source ); Fixed electricity price: €0.40/kWh; Difference between peak and low prices: €0.132/kWh; CO₂ reduction: Every 1 kWh of solar power reduces CO₂ emissions by approximately 0.997 kg ( source ).

Calculation details:
Annual electricity cost savings:
= Savings from self-consumption + Savings through AI-optimized charging
= 4,640 kWh × 85% × €0.40
+ (5,606.4 kWh − 4,640 kWh × 85%) × €0.132
≈ €1,797
- Estimated CO₂ reduction amount:
= 4,640 kWh × 85% × 0.997
≈ 3,932 kg

Note: Actual savings may vary depending on local solar radiation, actual electricity price, frequency of device usage, and individual electricity consumption.

Legal notice (Germany)

To benefit from the simplified exemption rules for plug-and-play solar power systems according to Section 8 Paragraph 5a EEG 2023:
- The installed PV capacity must be < 2000 Wp.
- The apparent power of the inverter must be ≤ 800 VA P.

If your total PV output exceeds 2,000 Wp, additional requirements may be imposed by the grid operator, e.g.:
a) Registration
b) Obligation to modify the meter
c) Formal approval procedures: Please inform yourself about the applicable local regulations before installation.

Plug & Play solar systems can generally be installed independently. However, in Germany, registration in the MaStR portal (www.marktstammdatenregister.de) is mandatory.
Commissioning and grid connection must be carried out by certified professionals. An electrician is legally required to ensure compliance with all regulations.
Ensuring compliance with regulations.
