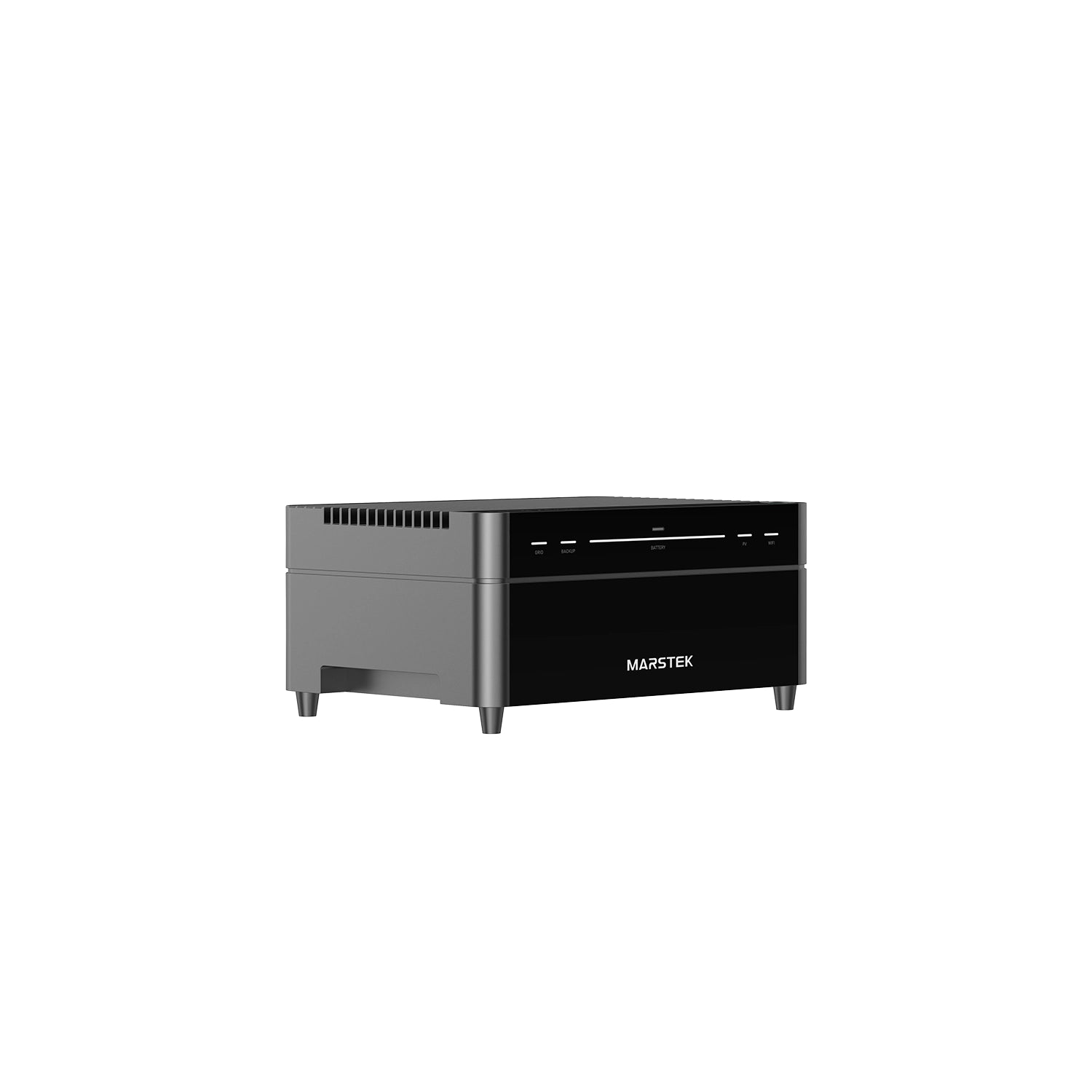

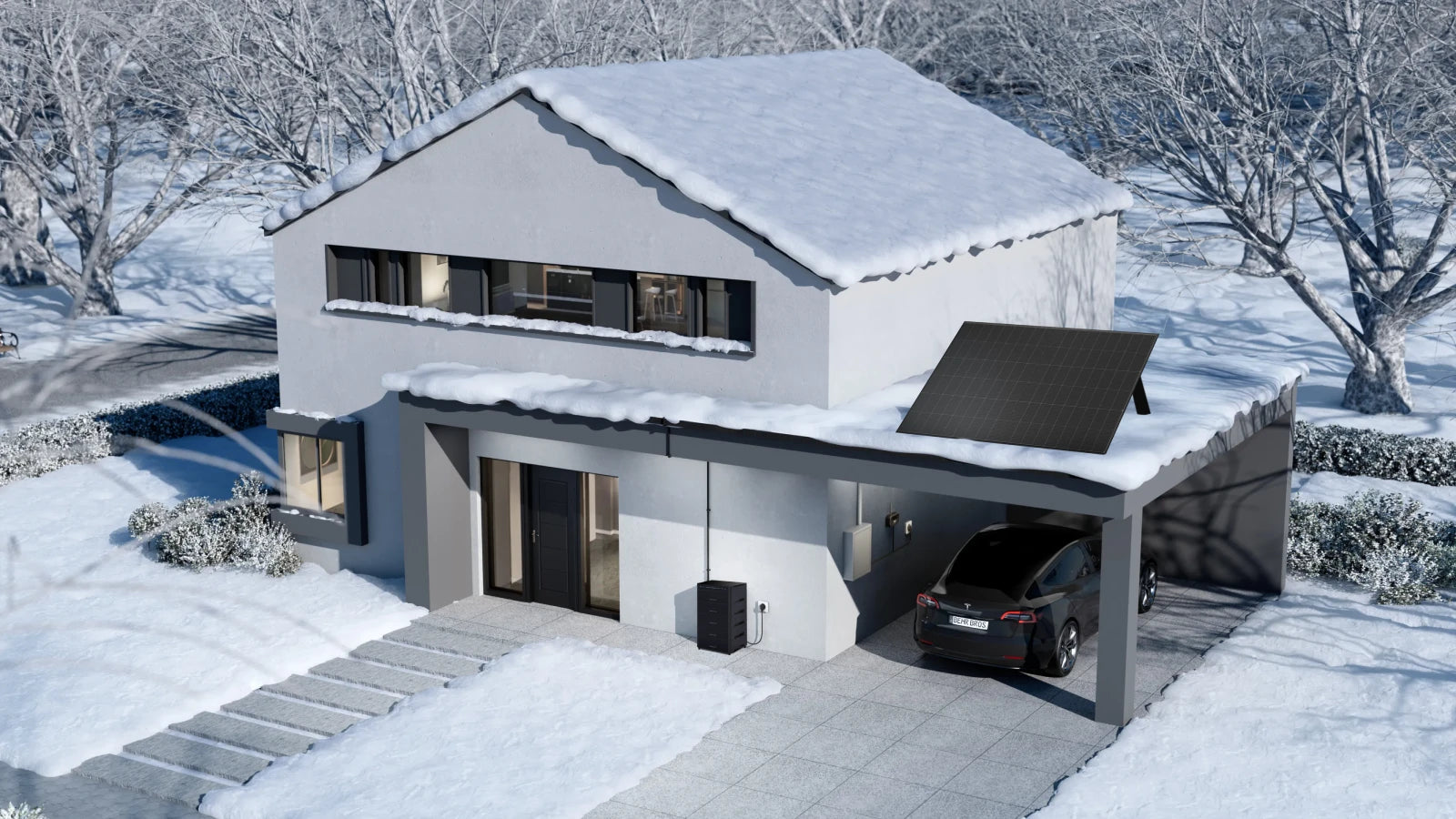

Marstek Venus A All-in-One Balcony Power Plant with Storage

Offer599,00 €
  • All-in-One Design: Integrated battery & inverter
  • 4 MPPT solar inputs: Up to 2.4 kW
  • 1200 W backup: Peak up to 1440 W
  • Expandable storage: Starting at 2.12 kWh, expandable up to 12.72 kWh
  • MARSTEK Intelligence (AI): Intelligent energy management for maximum efficiency
  • Plug & Play: Quick setup in just 5 minutes
  • Durable LFP batteries: 6000+ cycles, 15 years design lifespan, 10 years warranty
  • IP65 & wide temperature range: Dust and water resistant, stable from -20 °C to 55 °C
--
Speicherkapazität
0 W
PV-Leistung
--
AC output power
Choose your energy storage
Marstek Venus A All-in-One Balcony Power Plant with Storage
Marstek Venus A 2,12 kWh
599,00 €
Extension battery
Marstek Venus A Expansion Battery
Marstek Venus A expansion battery 2,12 kWh
Choose your solar panels
2 panels
4 Panels
8 panels
500Wp Bifacial
+ --
110Wp Flexible
+ --
110Wp Flexible
+ --
220Wp Flexible
+ --
220Wp Flexible
+ --
500Wp Bifacial
+ --
500Wp Bifacial
+ --
You might still need
Marstek CT002 Gratisgeschenk - Marstek
Marstek CT002 3-Phase Smart Meter
+69.00 € 109.00 €
--
Marstek Venus A All-in-One Balcony Power Plant with Storage
--
Marstek Venus A All-in-One Balcony Power Plant with Storage
--
0% VAT on deliveries to Germany

You hereby confirm that you meet the requirements for a VAT-free delivery in accordance with Section 12 Paragraph 3 of the German VAT Act (UStG).

Dear MARSTEK fan,
A tax rate of 0% may apply to the selected products in accordance with Section 12 Paragraph 3 of the German VAT Act (UStG). Please carefully check whether the requirements are met in your case. We do not provide tax advice and assume no liability for the tax treatment.

Conditions for VAT exemption (§ 12 para. 3 UStG):
Please check if the following conditions apply to you and tick the box if so:

The delivery and billing address is located in Germany.

The product is installed on or near private homes, apartments or public buildings used for non-profit purposes, or on mobile homes or houseboats that are not moved or are only moved occasionally.

The installed gross capacity of the photovoltaic system does not exceed 30 kWp, according to the market master data register.

You are also the operator of the purchased solar module.

Technische Daten
Module comparison & data
Pay conveniently
PayPal Apple Pay Google Pay Shop Pay Visa Mastercard Maestro
Reliable delivery

All in one – compact and powerful

Integrated all-in-one design

Data acquisition, storage, and utilization are combined in a single, compact device. The integrated micro-inverter converts solar power directly into usable alternating current. This saves space, eliminates the need for separate components, and drastically simplifies installation.

Highly efficient energy generation

Four independent MPPT channels and 2.4 kW input power maximize energy consumption. Minimized losses ensure peak efficiency and significantly more electricity for your own use.

Intelligent cost management

The integrated 1.2 kW inverter takes advantage of dynamic electricity tariffs. It charges automatically when prices are low or negative, thus sustainably reducing your costs.

Safety during power outages

Continue to power your most important devices seamlessly. The system delivers 1.2 kW of constant power and effortlessly handles short peak loads of up to 1.44 kW, ensuring you're never left in the dark, even in an emergency.

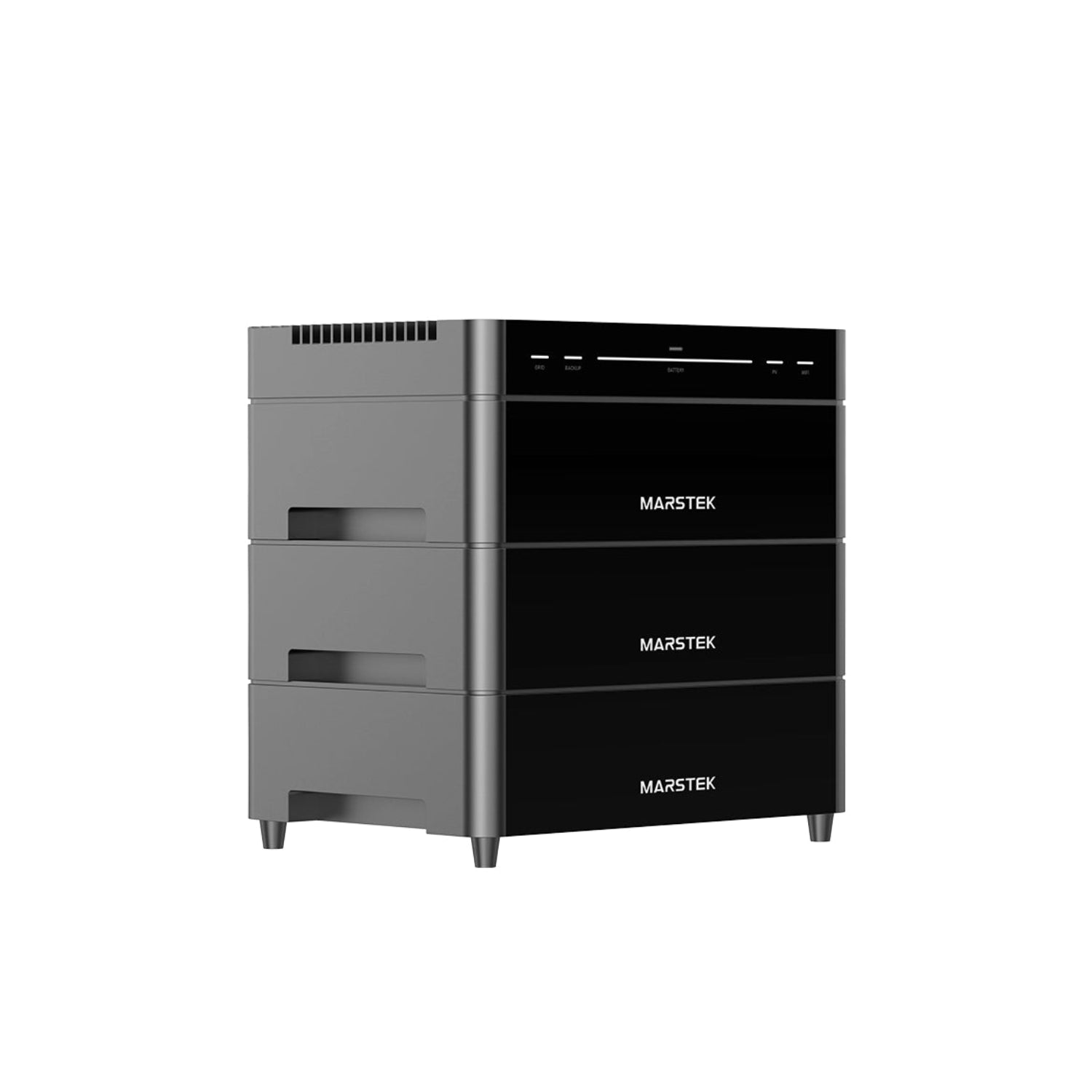

Tailor-made extension

Stay flexible for the future. Start with 2.12 kWh and easily scale the system up to 12.72 kWh as your energy needs increase. This way, your energy supply grows seamlessly with your household.

Integrated all-in-one design

Data acquisition, storage, and utilization are combined in a single, compact device. The integrated micro-inverter converts solar power directly into usable alternating current. This saves space, eliminates the need for separate components, and drastically simplifies installation.

Highly efficient energy generation

Four independent MPPT channels and 2.4 kW input power maximize energy consumption. Minimized losses ensure peak efficiency and significantly more electricity for your own use.

Intelligent cost management

The integrated 1.2 kW inverter takes advantage of dynamic electricity tariffs. It charges automatically when prices are low or negative, thus sustainably reducing your costs.

Safety during power outages

Continue to power your most important devices seamlessly. The system delivers 1.2 kW of constant power and effortlessly handles short peak loads of up to 1.44 kW, ensuring you're never left in the dark, even in an emergency.

Tailor-made extension

Stay flexible for the future. Start with 2.12 kWh and easily scale the system up to 12.72 kWh as your energy needs increase. This way, your energy supply grows seamlessly with your household.

AI mode with MARSTEK Intelligence
With MARSTEK Intelligence at its core, the AI mode optimizes the energy flow in your home. It automatically plans charging processes to maximize self-consumption, reduce electricity costs, and ensure a reliable power supply at all times.

Safety during power outages

Continue to power your most important devices seamlessly. The system delivers 1.2 kW of constant power and effortlessly handles short peak loads of up to 1.44 kW, ensuring you're never left in the dark, even in an emergency.

<15 ms EPS switching

<15 ms EPS switching

Switches to emergency power within 15 ms and ensures uninterrupted operation.

Safety during power outages

Continue to power your most important devices seamlessly. The system delivers 1.2 kW of constant power and effortlessly handles short peak loads of up to 1.44 kW, ensuring you're never left in the dark, even in an emergency.

&lt;15 ms EPS switching

<15 ms EPS switching

Switches to emergency power within 15 ms and ensures uninterrupted operation.

Highly efficient feedback avoidance with smart meters
Monitors and regulates energy flows automatically, prevents unwanted feedback with precise detection.
100 % compatible with solar systems
AC-coupled design ensures seamless integration into existing solar installations.
Smart control with the MARSTEK APP
Enables real-time monitoring and flexible mode selection for complete control over your home energy system.
Bluetooth, Wi-Fi, & Ethernet support
Ensures stable and complete data transmission for reliable monitoring and control of your system.

Tech Specs

PV input (DC)
Max. PV output 2400 W
Maximum input voltage 60 V
MPPT voltage range 16 V - 60 V
Starting voltage 22 V
Max. input current 4 × 16 A
Number of MPPTs / Inputs 4 / 4
PV connection MC4
AC mains connection (grid)
Output power 800 VA (Standard) / 1200 VA (Premium)
Input power (charging) 1200 VA
Nominal voltage 230 V (50 Hz)
Rated current 3.48A (800W) / 5.22A (1200W)
Power factor > 0.99 (adjustable ±0.8)
Power supply PECO-S-BM
Emergency power (backup)
Rated power 1200 VA
Peak power 1440 VA (60 s)
Output voltage 230 V (50 Hz)
Rated current 5.22 A
Connection European Socket (Schuko)
Integrated battery
Technology LiFePO4 (lithium iron phosphate)
Capacity (Internal) 2.12 kWh
Nominal voltage 41.6 V (13S)
Cycle life > 6000 (25 °C)
Depth of discharge (DOD) 90%
System & General
Dimensions (W×H×D) 450 × 340 × 220 mm
Weight 26 ± 1 kg
Protection rating / class IP65 / Class I
Overvoltage category DC II / AC III
Cooling Natural convection
Communication WiFi / Bluetooth / Ethernet

Disclaimer

Electricity cost savings, CO₂ reduction: Up to €1,104 per year and 2,412 kg CO₂:

Power generation:
According to data from MARSTEK's proprietary EMS platform, a 1000W solar panel in Southern Europe can generate up to 1,160 kWh annually. This product supports up to 2,400W of solar power, resulting in an annual generation of 1,160 × 2.4 = 2,784 kWh. Annual storage capacity: 10.48 kWh × 365 = 3,825.2 kWh.

Calculation assumptions:
Self-consumption rate: 85% ( source ); Fixed electricity price: €0.40/kWh; Difference between peak and low prices: €0.132/kWh; CO₂ reduction: Every 1 kWh of solar power reduces CO₂ emissions by approximately 0.997 kg ( source ).

Calculation details:
Annual electricity cost savings:
= Savings from self-consumption + Savings through AI-optimized charging
= 2,784 kWh × 85% × €0.40 + (3,825.2 kWh − 2,784 kWh × 85%) × €0.132
≈ €1,104
- Estimated CO₂ reduction amount:
= 2,784 kWh × 85% × 0.997
≈ 2,412 kg

Note: Actual savings may vary depending on local solar radiation, actual electricity price, frequency of device usage, and individual electricity consumption.

Legal notice (Germany)

To benefit from the simplified exemption rules for plug-and-play solar power systems according to Section 8 Paragraph 5a EEG 2023:

- The installed PV capacity must be < 2000 Wp.
- The apparent power of the inverter must be ≤ 800 VA P. If your total PV output exceeds 2000 Wp, additional requirements may apply.
the network operator, e.g.:

a) Registration
b) Obligation to modify the meter
c) Formal approval procedures: Please inform yourself about the applicable local regulations before installation.

Plug & Play solar systems can generally be installed independently. However, in Germany, registration in the MaStR portal (www.marktstammdatenregister.de) is mandatory.
Commissioning and grid connection must be carried out by certified professionals. An electrician is legally required to ensure compliance with all regulations.
Ensuring compliance with regulations.
